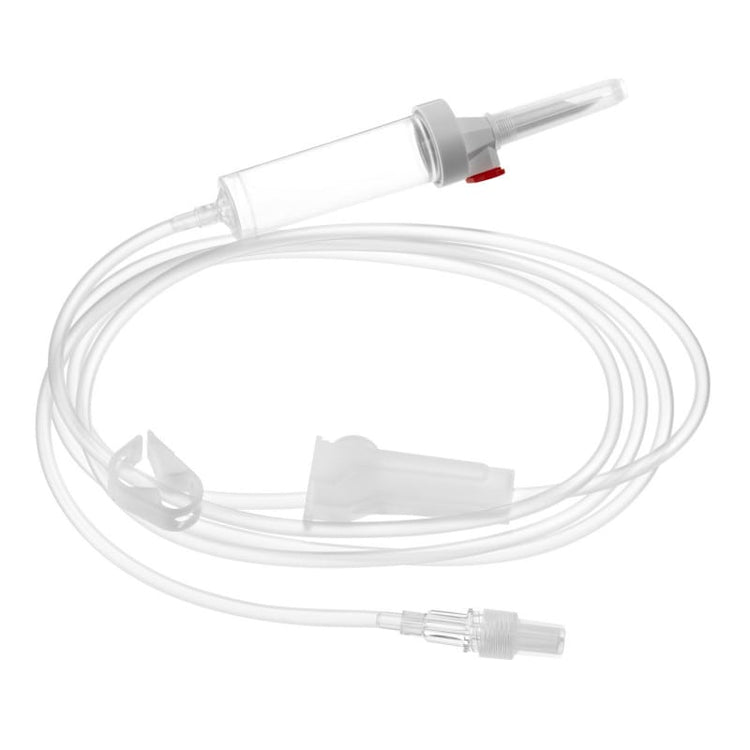

BD Gravity Infusion Set with Anti-Run Dry Technology

The BD Gravity Infusion Set with Anti-Run Dry technology features a hydrophilic filter membrane that minimises the risk of air entrapment in the tube. In addition, the hydrophilic membrane ensures a constant fluid level after infusion, preventing backflow of blood from the catheter. Easy filling of the tube, with only one hand and without fluid leakage, is made possible by the AutoPrime cap.

You can get the gravity infusion set optionally with an additional SmartSite system or with a Check Valve. The SmartSite system contains a closed system with a needle-free Y-port, which reduces the risk of bacterial contamination and needlestick injury. The model with non-return valve has a non-return valve on the tubing which prevents backflow of fluid.

Product Details

• BD Gravity Infusion Set with Anti-Run Dry Technology
• With manual ventilation
• Drip chamber with piercing spike
• 20 drops per ml
• Drip chamber with 15 µm filter
• Minimises risk of air entrapment
• Maintains a constant fluid level after the end of infusion
• Prevents blood reflux from the catheter and thus avoids occlusion
• ISO 8536-4 compliant
• AutoPrime cap with hydrophobic venting filter
• Can be filled with one hand through the AutoPrime cap, without liquid leakage
• DEHP-free PVC tubing
• Latex-free
• Individually sterile packed
• Fixed Luer Lock
• With tube clamp
• Tube innerdiameter: 3 mm
• Tube outer diameter: 4 mm
• Tube length: 185 cm
• Filling volume: 18 ml, with SmartSite system variant: 19 ml
• Optional with needle-free SmartSite system
• Optional with Check Valve
• Quantity: 1 piece
